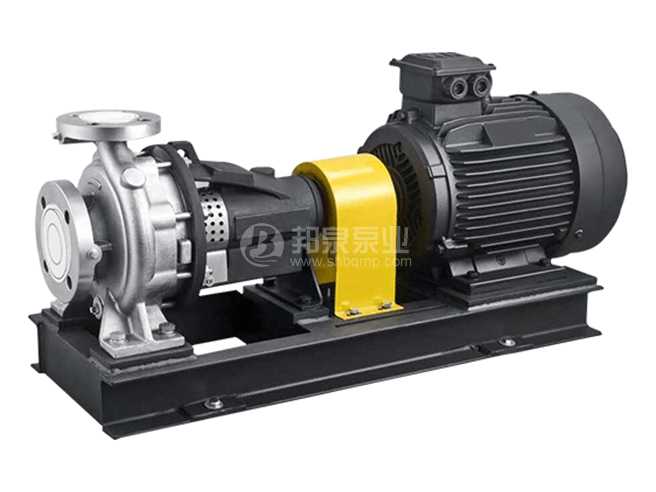

XA型單級單吸離心泵 SINGLE STAGE CENTRIFUGAL PUMP
上海邦泉泵業制造有限公司 咨詢熱線：021-57648032
性能表PERFORMANCE TABLE n=2900rpm
|
型號 Model |
流量 Capacity Q |
揚程 Head H (m) |
轉速 Speed n (rpm) |
功率 Power P (kW) |
電機型號 Motor supplied (kW) |
泵效率 Eff. л (%) |
必需汽蝕余量 (NPSH)r (m) |
葉輪直徑 lmpeller diameter (mm) |
泵口徑 Pump nozzle (mm) |
錐管直徑 Tape pipe diameter (mm) |
重量 Weight (kg) |
||||
|
m3/h |
L/s |
軸 Shaft |
電機 Motor |
ln |
Out |
ln |
Out |
||||||||
|
XA50/13 |
36 60 72 |
10 16.67 20 |
25.5 23 20.5 |
2900 |
3.85 4.95 5.36 |
5.5 5.5 7.5 |
Y132S2-2 7.5kW |
65 76 75 |
2.5 3.2 4 |
Φ139 |
65 |
50 |
80 |
80 |
34 |
|
XA50/13A |
33.5 56 67.5 |
9.31 15.56 18.75 |
22 19.5 17.2 |
2900 |
3.19 4.02 4.33 |
4 5.5 5.5 |
Y132S1-2 5.5kW |
63 74 73 |
2.5 3.1 3.6 |
Φ130 |
65 |
50 |
80 |
80 |
34 |
|
XA50/13B |
31 52 62 |
8.61 14.44 17.22 |
18.5 16.5 14.8 |
2900 |
2.56 3.24 3.52 |
3 4 5.5 |
Y132S1-2 5.5kW |
61 72 71 |
2.5 2.9 3.3 |
Φ120 |
65 |
50 |
80 |
80 |
34 |
|
XA50/16 |
40 65 78 |
11.11 18.05 21.67 |
41.5 38 35 |
2900 |
7.06 9.09 10.05 |
11 11 11 |
Y160M1-2 11kW |
64 74 74 |
2.5 3.5 4.2 |
Φ174 |
65 |
50 |
80 |
80 |
38 |
|
XA50/16A |
38 61.5 74 |
10.56 17.1 20.6 |
37 33.8 31.2 |
2900 |
6.19 7.9 6.75 |
7.5 11 11 |
Y160M1-2 11kW |
62 72 72 |
2.5 3.3 3.9 |
Φ165 |
65 |
50 |
80 |
80 |
38 |
|
XA50/16B |
35.5 58 69.5 |
9.86 16.11 19.31 |
32.5 29.5 27 |
2900 |
5.24 6.66 7.36 |
5.5 11 11 |
Y160M1-2 11kW |
60 70 69.5 |
2.35 3.1 3.7 |
Φ155 |
65 |
50 |
80 |
80 |
38 |
|
XA50/20 |
36 60 72 |
10 16.67 20 |
62 56 50 |
2900 |
10.48 13.07 14.42 |
15 15 18.5 |
Y160L-2 18.5kW |
58 70 68 |
2.5 3.2 4 |
Φ214 |
65 |
50 |
80 |
80 |
46 |
|
XA50/20A |
34.5 57.5 69 |
9.6 16 19.2 |
56 50.5 45 |
2900 |
9.25 11.5 12.64 |
11 15 15 |
Y160M2-2 15kW |
57 69 67 |
2.5 3.1 3.75 |
Φ205 |
65 |
50 |
80 |
80 |
46 |
|
XA50/20B |
33 54.5 65.5 |
9.1 15.1 18.3 |
50.6 45.6 40.5 |
2900 |
8.13 10 11 |
11 15 15 |
Y160M2-2 15kW |
55.5 67.5 66 |
2.5 3 3.5 |
Φ195 |
65 |
50 |
80 |
80 |
46 |
|
XA50/26G |
40 65 78 |
11.11 18.05 21.67 |
100 91 82 |
2900 |
20.17 25.97 29.03 |
30 30 37 |
Y200L2-2 37kW |
54 62 66 |
2.5 3.5 4.2 |
Φ264 |
65 |
50 |
80 |
80 |
63 |
|
XA50/26GA |
38.5 63 75.5 |
10.69 17.5 20.97 |
92.5 84 75.6 |
2900 |
18.29 23.63 36.34 |
22 30 30 |
Y200L1-2 30kW |
53 61 59 |
2.4 3.3 3.9 |
Φ255 |
65 |
50 |
80 |
80 |
63 |
|
XA50/26GB |
37 60.5 72.5 |
10.28 16.81 20.14 |
85.5 77.5 69.8 |
2900 |
16.57 21.29 23.76 |
18.5 30 30 |
Y200L1-2 30kW |
52 60 58 |
2.3 3.2 3.9 |
Φ245 |
65 |
50 |
80 |
80 |
63 |
性能表PERFORMANCE TABLE n=1450rpm
|
型號 Model |
流量 Capacity Q |
揚程 Head H (m) |
轉速 Speed n (rpm) |
功率 Power P (kW) |
電機型號 Motor supplied (kW) |
泵效率 Eff. л (%) |
必需汽蝕余量 (NPSH)r (m) |
葉輪直徑 lmpeller diameter (mm) |
泵口徑 Pump nozzle (mm) |
錐管直徑 Tape pipe diameter (mm) |
重量 Weight (kg) |
||||
|
m3/h |
L/s |
軸 Shaft |
電機 Motor |
ln |
Out |
ln |
Out |
||||||||
|
XA50/13 |
18 30 36 |
5 8.33 10 |
6.4 5.8 5.2 |
1450 |
0.514 0.658 0.739 |
0.75 0.75 1.1 |
Y90S-4 1.1kW |
61 72 69 |
2.2 2.4 2.8 |
Φ139 |
65 |
50 |
80 |
65 |
34 |
|
XA50/16 |
20 32 38 |
5.55 8.88 10.55 |
10.3 9.5 8.8 |
1450 |
0.93 1.18 1.3 |
1.1 1.5 1.5 |
Y90L-4 1.5kW |
60 70 70 |
2.3 2.4 3 |
Φ174 |
65 |
50 |
80 |
65 |
38 |
|
XA50/20 |
18 30 36 |
5 8.33 10 |
15.4 13.5 11.6 |
1450 |
1.37 1.7 1.86 |
1.5 2.2 2.2 |
Y100L1-4 2.2kW |
55 65 61 |
2.2 2.3 2.9 |
Φ214 |
65 |
50 |
80 |
65 |
46 |
|
XA50/26 |
20 32 38 |
5.55 8.89 10.55 |
25 22.5 19.8 |
1450 |
2.62 3.27 3.63 |
3 4 5.5 |
Y132S-4 5.5kW |
52 60 56.5 |
2.3 2.4 3 |
Φ264 |
65 |
50 |
80 |
65 |
63 |
|
XA50/32 |
24 40 48 |
6.67 11.11 13.33 |
36 34 32 |
1450 |
5 6.38 7.09 |
5.5 7.5 11 |
Y160M-4 11kW |
47 58 59 |
2 2.5 3.2 |
Φ328 |
65 |
50 |
80 |
65 |
101 |
|
XA50/32A |
23 38.5 46 |
6.39 10.69 12.78 |
32.5 30.6 28.7 |
1450 |
4.52 5.73 6.36 |
5.5 7.5 7.5 |
Y132M-4 7.5kW |
45 56 56.5 |
2 2.4 3 |
Φ315 |
65 |
50 |
80 |
65 |
101 |
|
XA50/32B |
22 36.5 44 |
6.11 10.14 12.22 |
29.4 27.7 26 |
1450 |
4.24 5.1 5.66 |
5.5 7.5 7.5 |
Y132M-4 7.5kW |
41.5 54 55 |
2 2.3 2.8 |
Φ300 |
65 |
50 |
80 |
65 |
101 |
